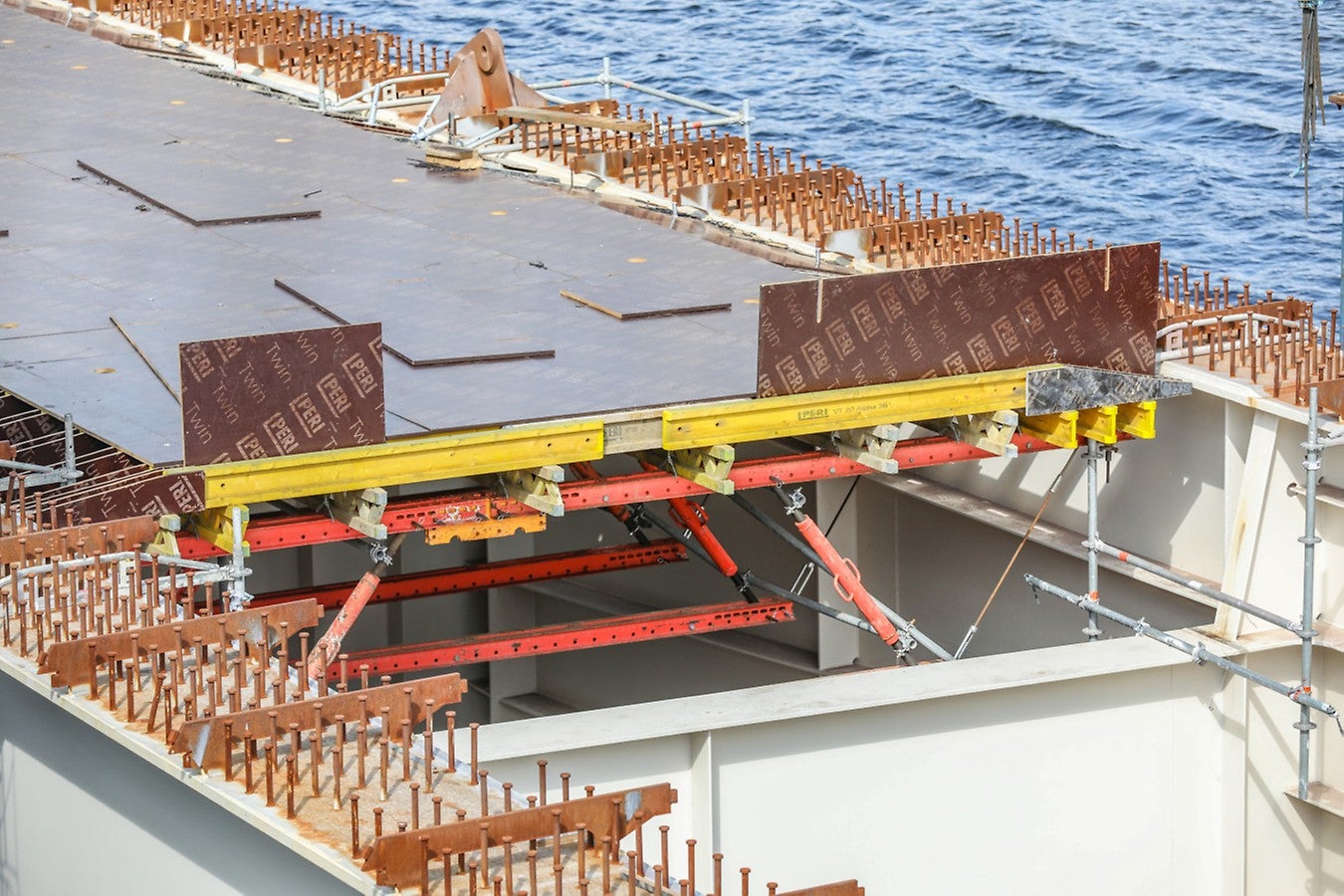

VT20 Alpha 3S Girder in action
-
![VT 20 Alpha 3S in use]( "VT 20 Alpha 3S")
Wide Range of ApplicationsSuitable for a wide range of applications and provides a mid-range option delivering an excellence balance of cost, quality and benefits.
-
![Formwork girder]( "VT 20 Alpha 3S")
Low Environmental ImpactLow environmental impact compared to metal equivalents & PEFC raw material certified.
Product Data Sheet
System type
Wooden Formwork Beam
Dimensions
Height: 20 cm,
Spread: 8 cm,
Length: 2.45 | 2.65 | 2.90 | 3.30 | 3.60 | 3.90 | 4.50 | 4.90 | 5.90 | 11.90
Weight
4.5 kg/m
Load
Permissible shear force: 11 kN,
Permissible bending moment: 5.0 kNm,
Allowed bearing strength: 22 kN
