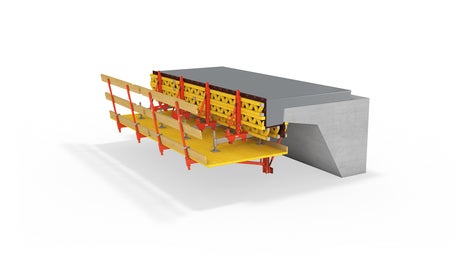

The lightweight for new construction and refurbishment projects

VARIOKIT VGK Cantilevered Parapet Bracket

The lightweight for new construction and refurbishment projects

For short bridge superstructures up to 200 m long, the VGK Cantilevered Parapet Bracket is a safe, rational and efficient solution in new construction and refurbishment projects.

Lightweight, hand-mounted system components facilitate easy operation and efficient working. The construction with a separate platform and formwork unit features penetration-free decking and provides the best possible protection for the ongoing flow of traffic below. The VGK is anchored to the underside of the bridge. As a result, it does not disturb work operations on the upper side of the superstructure at any time.


VARIOKIT VGK Cantilevered Parapet Bracket in action

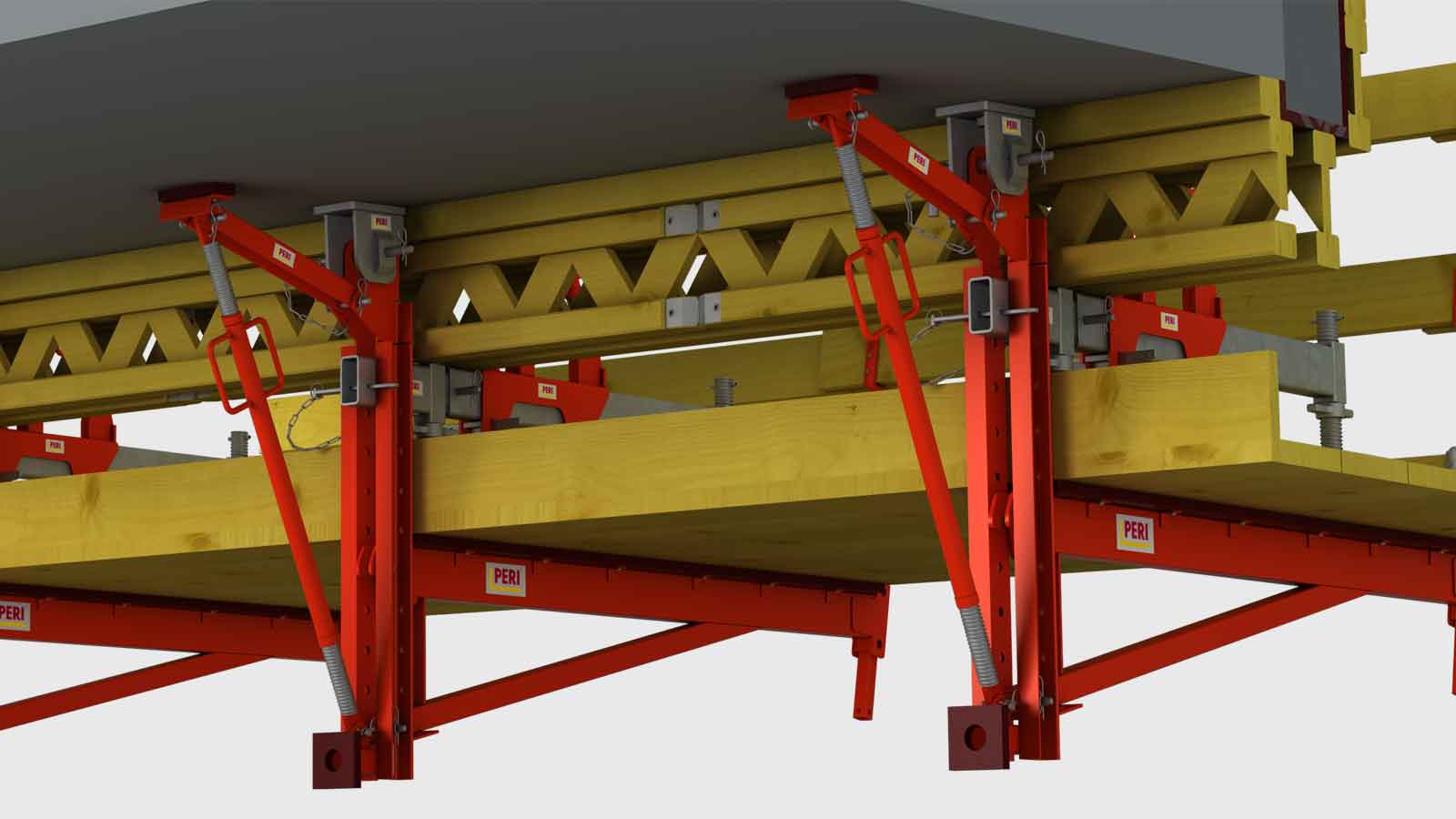

  • After the initial assembly of the PERI VGK Cantilevered Parapet Bracket, access by means of an elevating work platform or scaffolding is not necessary.
    All-round safety

    High level of protection for the on-going flow of traffic below due to the penetration-free surface.

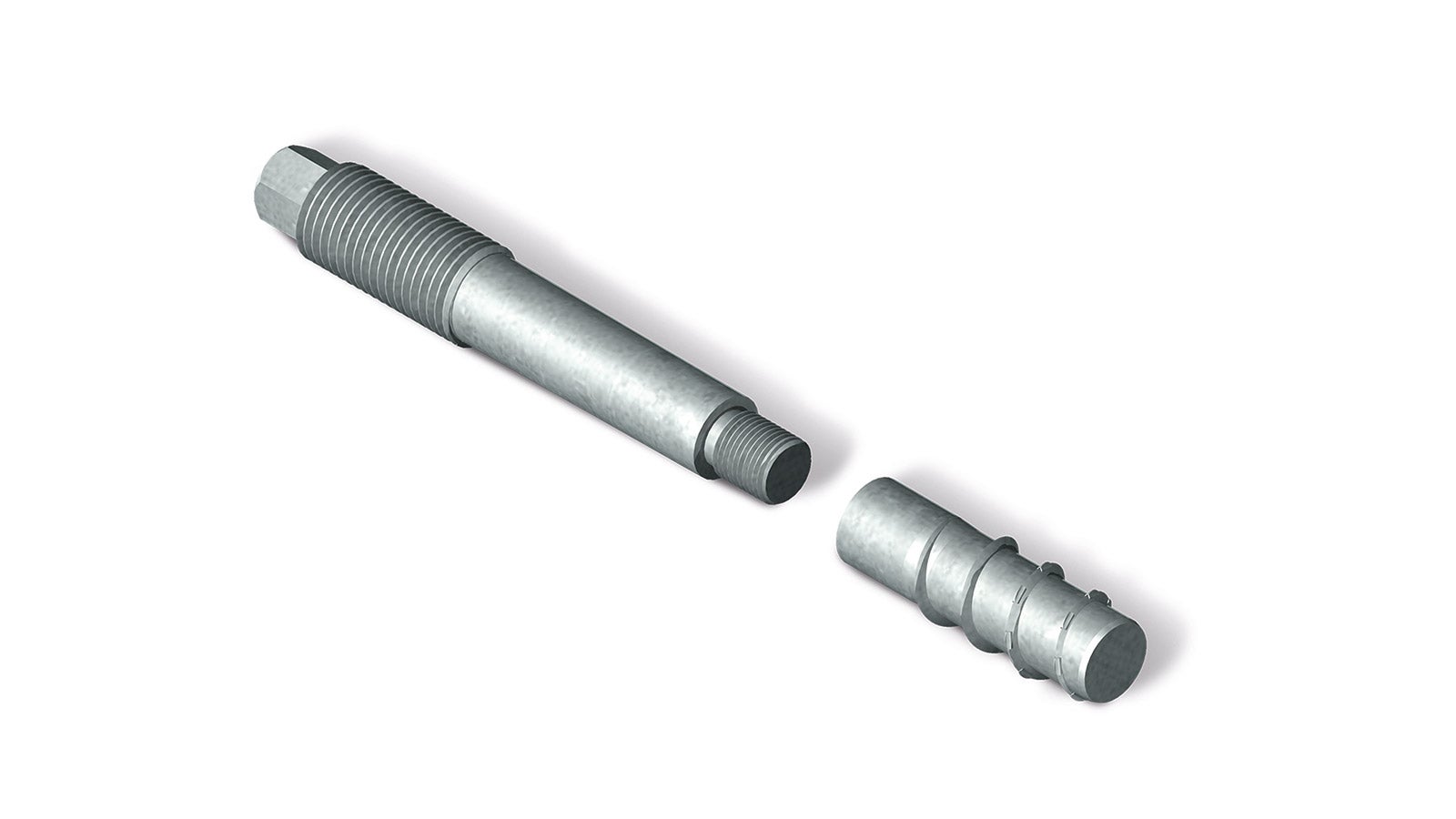

  • The Refurbishment Anchor consists of two parts of which only the Internal Threaded Sleeve is lost; the anchor bolt can be unscrewed and removed after use and can be re-used many times over. This facilitates dismantling work and saves costs.
    Efficient working procedures

    Through simple, manual assembly and continuous adjustment together with a separate formwork unit

    The Refurbishment Anchor consists of two parts of which only the Internal Threaded Sleeve is lost; the anchor bolt can be unscrewed and removed after use and can be re-used many times over. This facilitates dismantling work and saves costs.

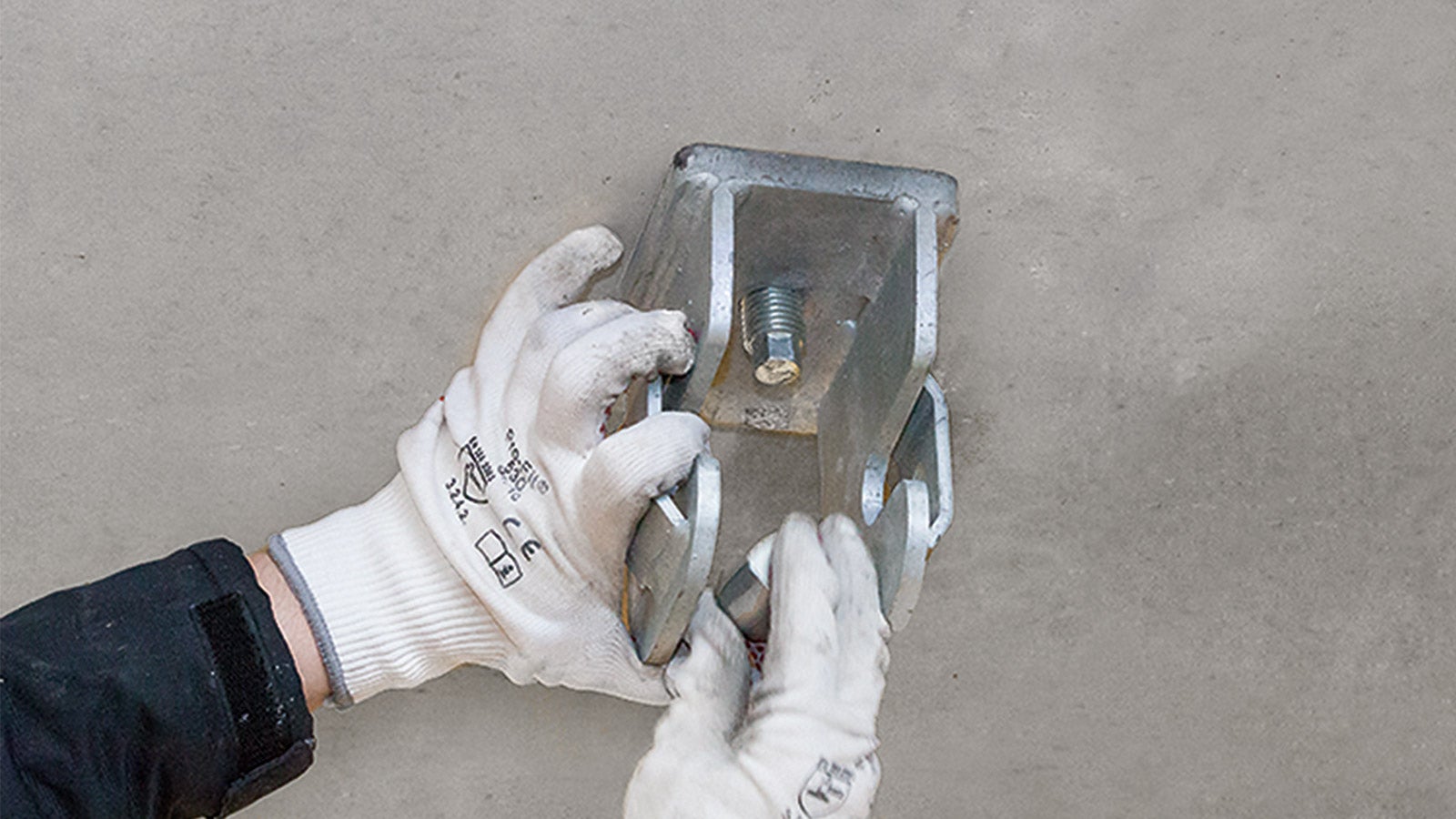

  • The refurbishment anchor can immediately bear the dead weight of the VGK Cantilevered Parapet Bracket. This leads to fast erection and reduces blocking time. The bracket is fully load-bearing once the composite mortar has hardened.
    Maximum schedule and execution reliability

    Through a rentable, type-tested system and suitable anchoring for a wide range of applications.
