PERI UP Flex Shoring

The maximum level of flexibility in shoring solutions


PERI UP Flex is the universal modular scaffolding for a wide range of tasks. It makes shoring assemblies with lightweight scaffold materials extremely cost-effective. The system grid dimensions of 25 cm and 50 cm allow optimum adaptation to different geometries and loads.

PERI UP shoring towers have been type-tested for heights of up to 21.89 m; up to two additional frames can be attached.


PERI UP Flex Shoring in action

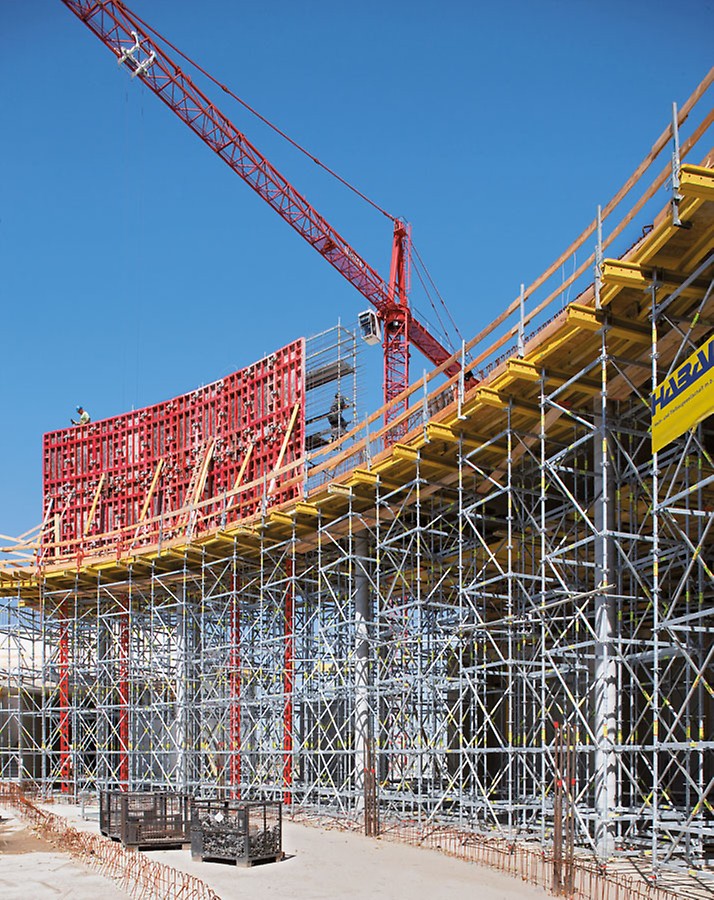

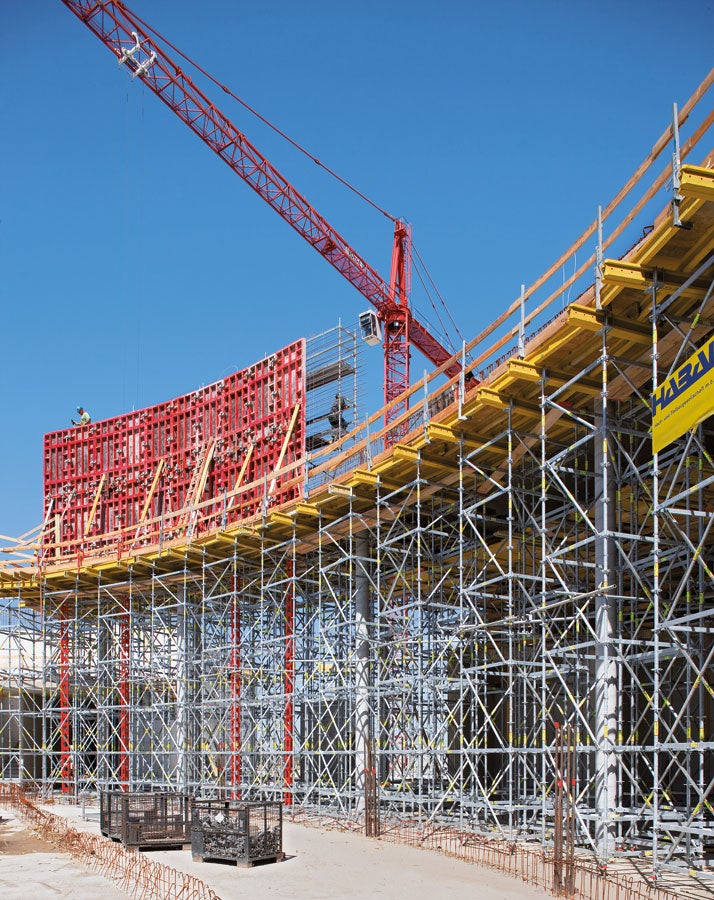

  • PERI UP Flex shoring towers provide a stable base for MULTIFLEX slab formwork, also at great heights. On this particular project, point loads were transferred with HD 200 Heavy-Duty Props.
    Variable

    From shoring towers to complex load-bearing birdcage structures, adaptable to suit almost all geometries and loads.

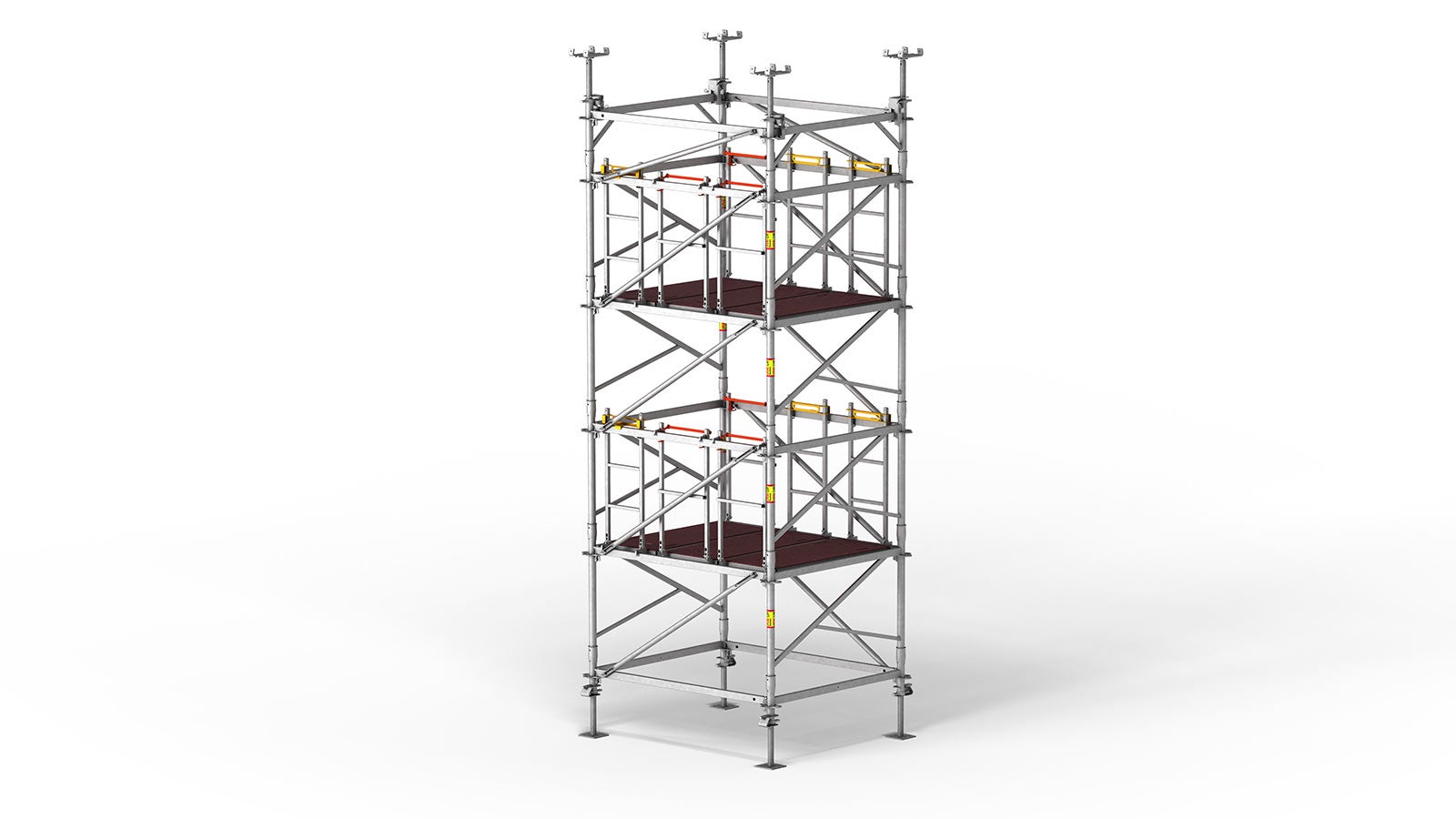

  • Assembly and working levels ensure safe working conditions at all times along with very convenient internal access.
    Modular

    Extremely flexible in all three dimensions through the uniform grid size.

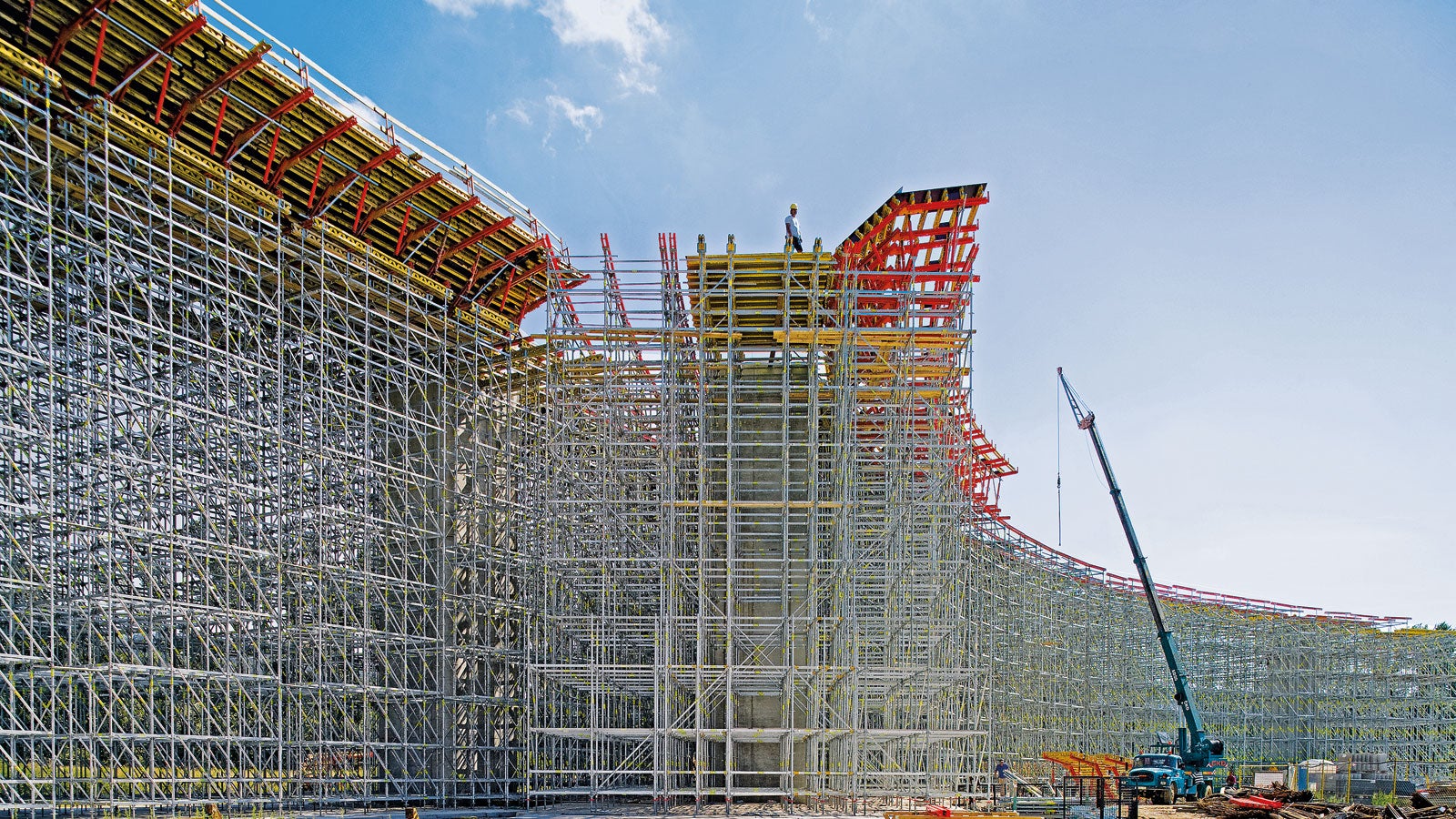

  • PERI UP Flex Shoring: Each standard is positioned in the system to suit both the geometry and the load to be carried.
    Dimensionally stable

    Can be moved in large units by crane due to the high rigidity of the ledger connections.

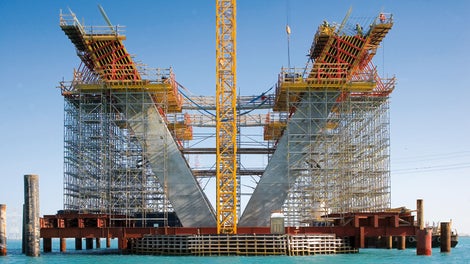

  • The flexible PERI UP scaffold system can be adapted geometrically tight and to suit every loading case. Even for tightly-spaced working areas, tidily arranged PERI pallets and transport containers ensure uncluttered storage areas and fast transport of matrials.
    Compatible

    Coordinated with PERI formwork systems for optimized transfer of loads.

Framework Unit/Birdcage

Assembly of the framework unit is based on shoring towers which are connected in one direction and thus function as shear frames. In direction of the framework, the system can be considered as a free standing system, thus additional braces for the transfer of horizontal loads are usually not necessary. A typical application is the building of bridges.

PERI UP Flex allows its complete variability to be showcased when creating three-dimensional shoring structures. Here, the positions of the legs can be adapted exactly to match the on-site load requirements. Very high load concentrations can be transferred just as easily as small area loads. Adjustments to very complicated geometrical shapes are realisable with standard materials with very little time and effort.

The high rigidity of the ledger connections maintains the shape of even very large scaffolding units when being moved with the crane or by means of castors. Tension-proof connections are used to connect the standards to each other. Units can be pre-assembled on the ground and subsequently joined together to form large shoring scaffolds. Working platforms for formwork operations as well as access solutions can be integrated in the shoring through the installation of system decks and stairs.
