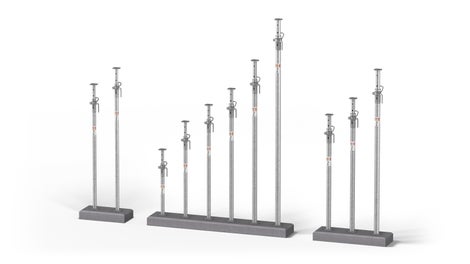

PEP Ergo Slab Props in action
-

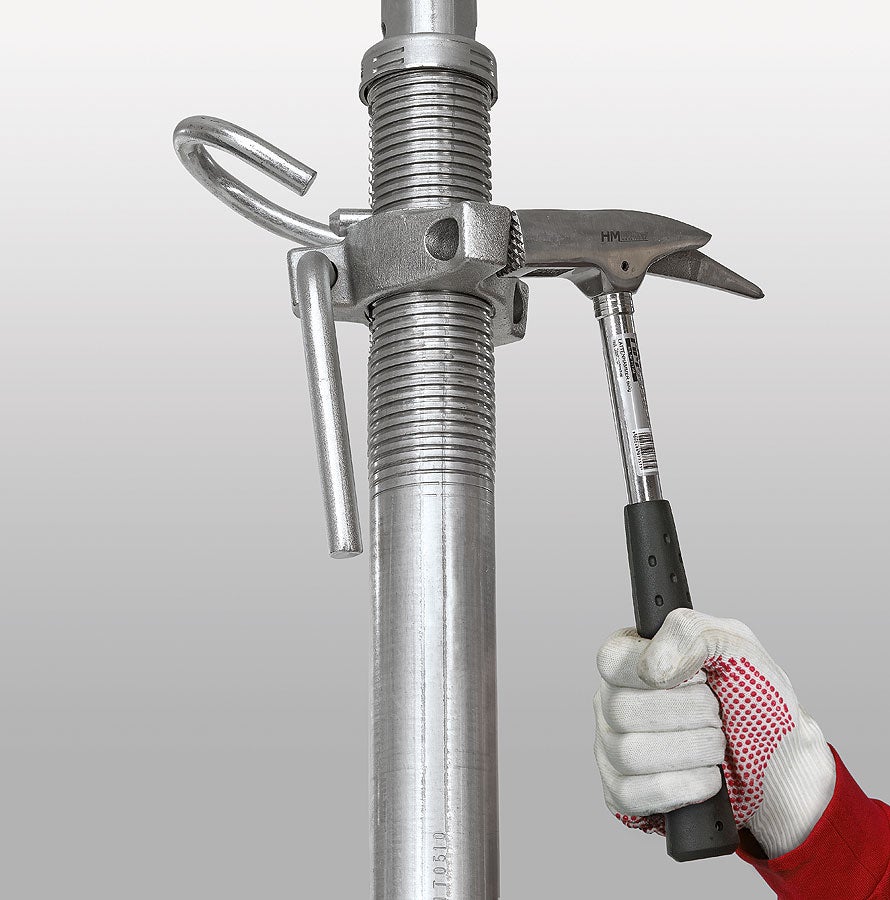

Trendsetting adjusting nut
The form of the lowering nut dictates the direction of lowering the load while the captive handgrip allows easy adjustment.
-
High-load bearing capacity & easily adjustable
The 12 cm long adjustment range eliminates frequent re-positioning whilst the measuring scale on the inner tube accelerates length pre-adjustments.
Prop load up to 50 kN – with a comparatively low dead weight
(PEP Ergo E-300+: G = 19.3 kg; max. F = 50.4 kN).
Product Data Sheet
System type
Steel Supports
Material
Steel
Fulfilled standard
Load classes B, D or E of EN 1065
Load
Maximum load capacity: Up to 50 kN
Other
Length embossing on the top and bottom plates simplify logistics by quickly recognizing the supports - even when stacked.
Variant PEP Ergo B
Dimensions
Length: PEP Ergo B-300: 1,97 - 3,00 m | PEP Ergo B-350: 2,25 - 3,50 m
Weight
PEP Ergo B-300: 14 kg | PEP Ergo B-350: 15,6 kg
Load
Maximum load capacity: 30 kN
Variant PEP Ergo D
Dimensions
Length: PEP Ergo D-150: 0,96 - 1,50 m | PEP Ergo D-250: 1,47 - 2,50 m | PEP Ergo D-300+: 1,79 - 3,00 m | PEP Ergo D-350+: 2,08 - 3,50 m | PEP Ergo D-400: 2,51 - 4,00 m | PEP Ergo D-500: 3,26 - 5,00 m
Weight
PEP Ergo D-150: 9,1 kg | PEP Ergo D250: 13,1 kg | PEP ergo D300+: 15,9 kg | PEP Ergo D-350+: 19,2 kg | PEP Ergo D-400: 23,2 kg | PEP ergo D-500: 30,7 kg
Load
Maximum load capacity: PEP Ergo D-150: 30 kN | PEP Ergo D-250: 35 kN | PEP Ergo D-300+: 35 kN | PEP Ergo D-350+: 40 kN | PEP Ergo D-400: 40 kN | PEP Ergo D-500: 40 kN
Variant PEP Ergo E
Dimensions
Length: PEP Ergo E-300+: 1,79 - 3,00 m | PEP Ergo E-350+: 2,08 - 3,50 m | PEP Ergo E-400: 2,51 - 4,00 m
Weight
PEP Ergo E-300+: 19,3 kg | PEP ergo E-350+: 21,7 kg | PEP Ergo E-400: 26,6 kg
Load
Maximum load capacity: PEP Ergo E-300+: 50 kN | PEP Ergo E-350+: 50 kN | PEP Ergo E-400: 50 kN
